20160813-Goshen_at_50-Giant_Swing

2016-08-13

On 5 Aug, Abigail Williams, NCAC COPE Director at Camp Post, Goshen Scout Reservation called about damage done to the south west guy of the Giant Swing. A staff member had backed a Jeep Cherokee into one of the stays. Abby said the guy wire vibrated more than the other stays when the Swing was operated. The pictures taken on 6 Aug, were from Abby.

While I (Tony Waisanen) was supporting the Goshen@50 planning committee on 13 Aug, I took the remaining pictures. In my opinion, the cables were all of approximately equally taut; about the same tension on each. Though the guy extended much further than the guy on the same (western) end of the element, I did not observe any tendency to continue to extend. The guy appeared to be firmly resisting any pulling.

Unfortunately, I am unable to find detailed pictures of the western guys prior to 6 Aug 2016. There is a possibility the guys were not embedded to the same depth. The south western guy may have always extended further than the guy on the same end.

  A B C
1

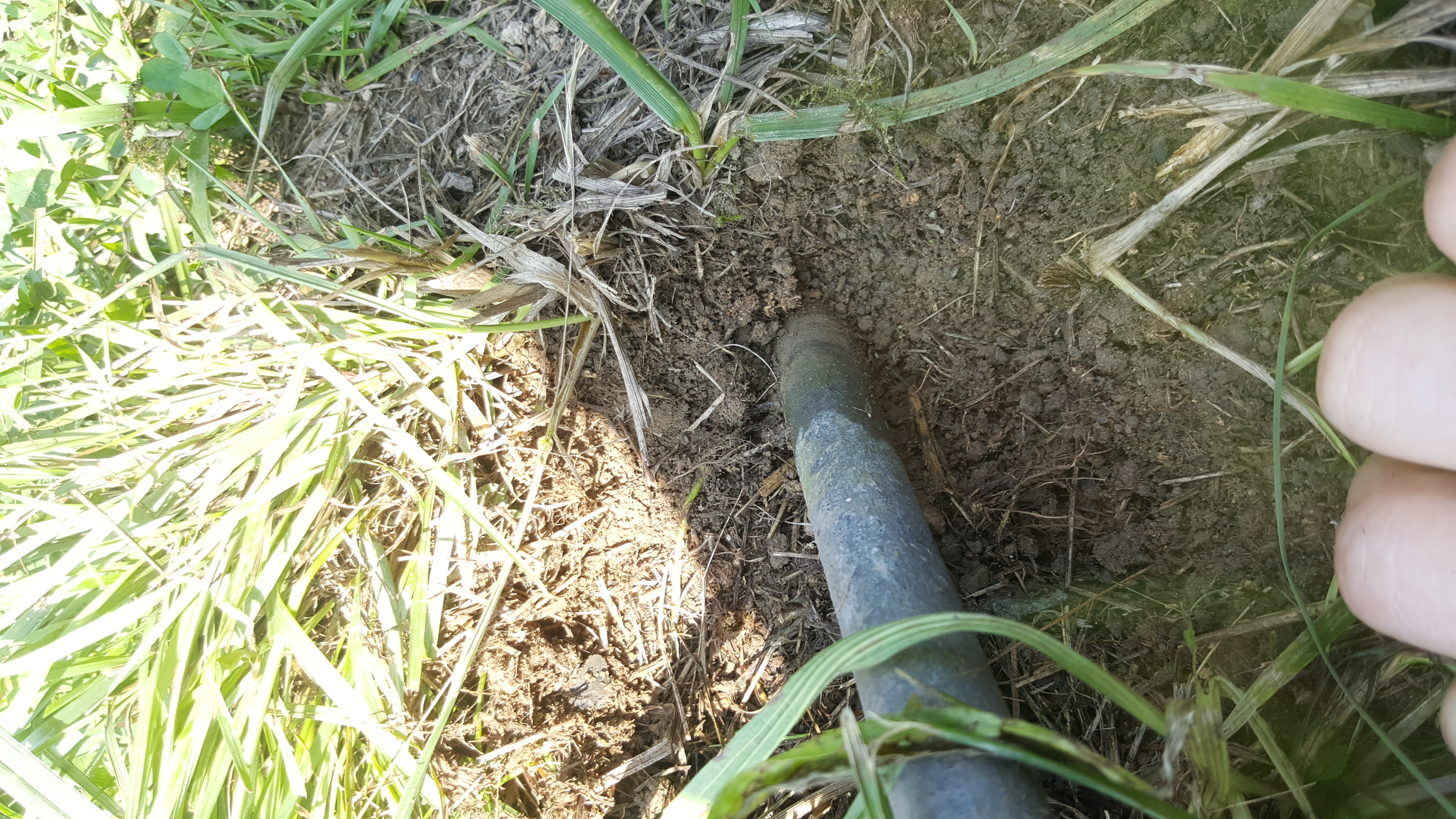

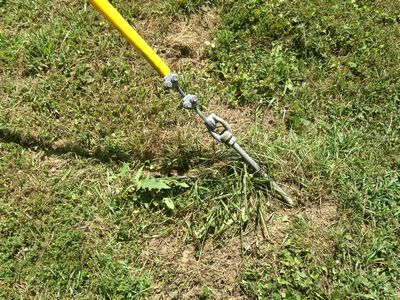

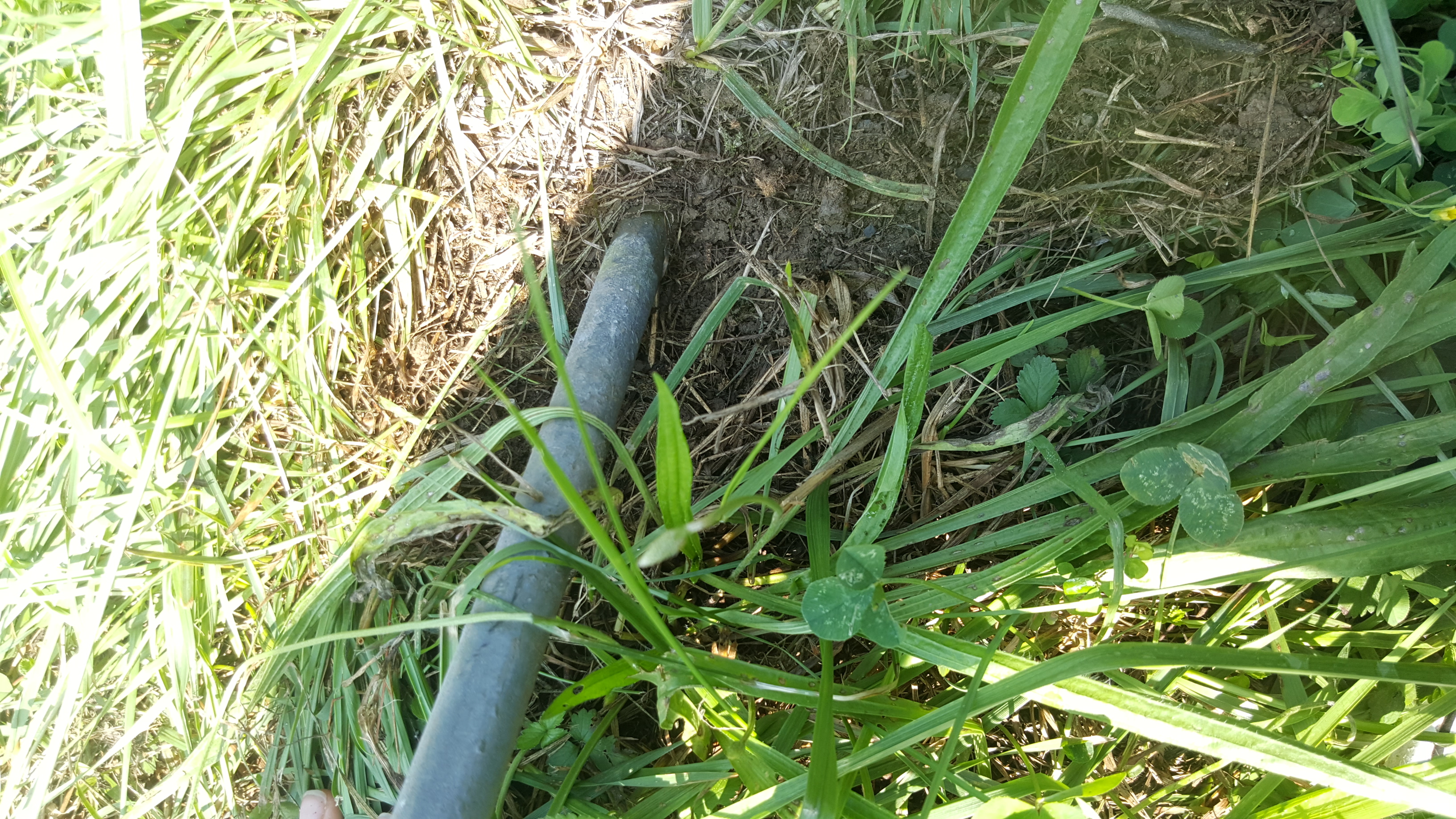

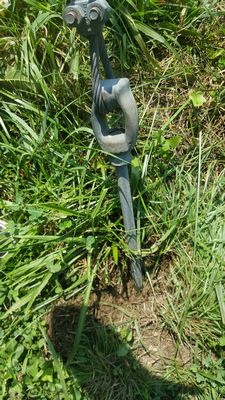

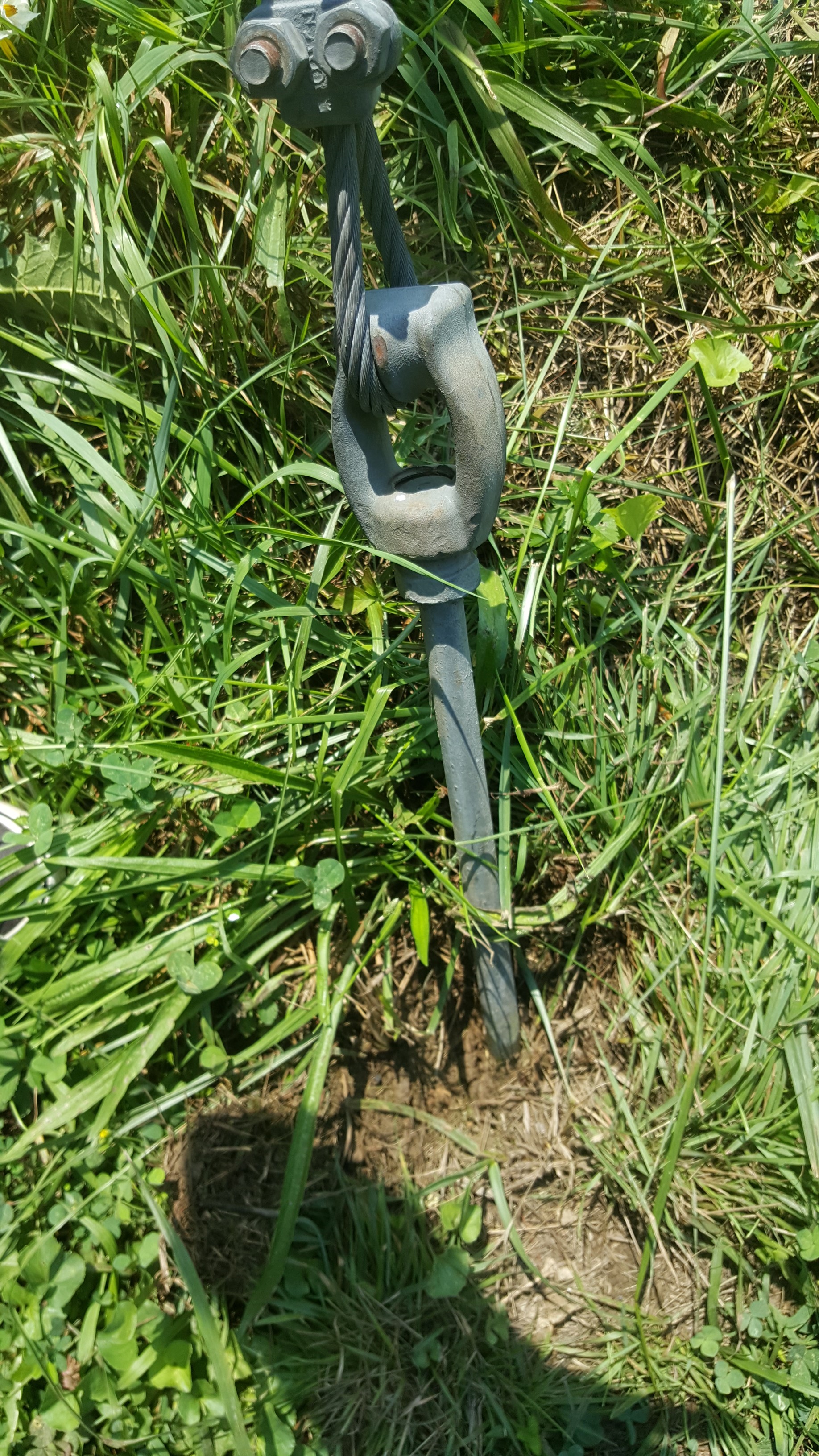

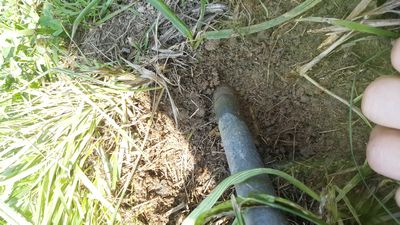

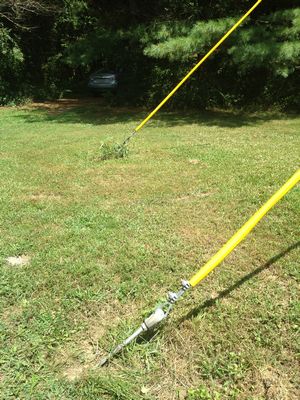

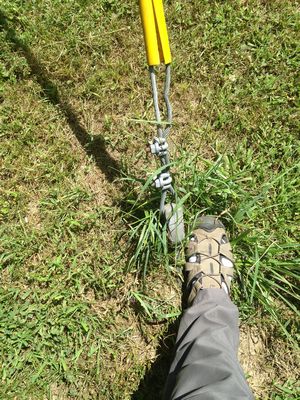

Guy, South West (closeup)
2016-08-06 11:00 AM 2403 KB

Guy, South West (closeup)
2016-08-06 11:00 AM 2444 KB

Guy, South West (closeup)
2016-08-06 11:00 AM 2515 KB
2

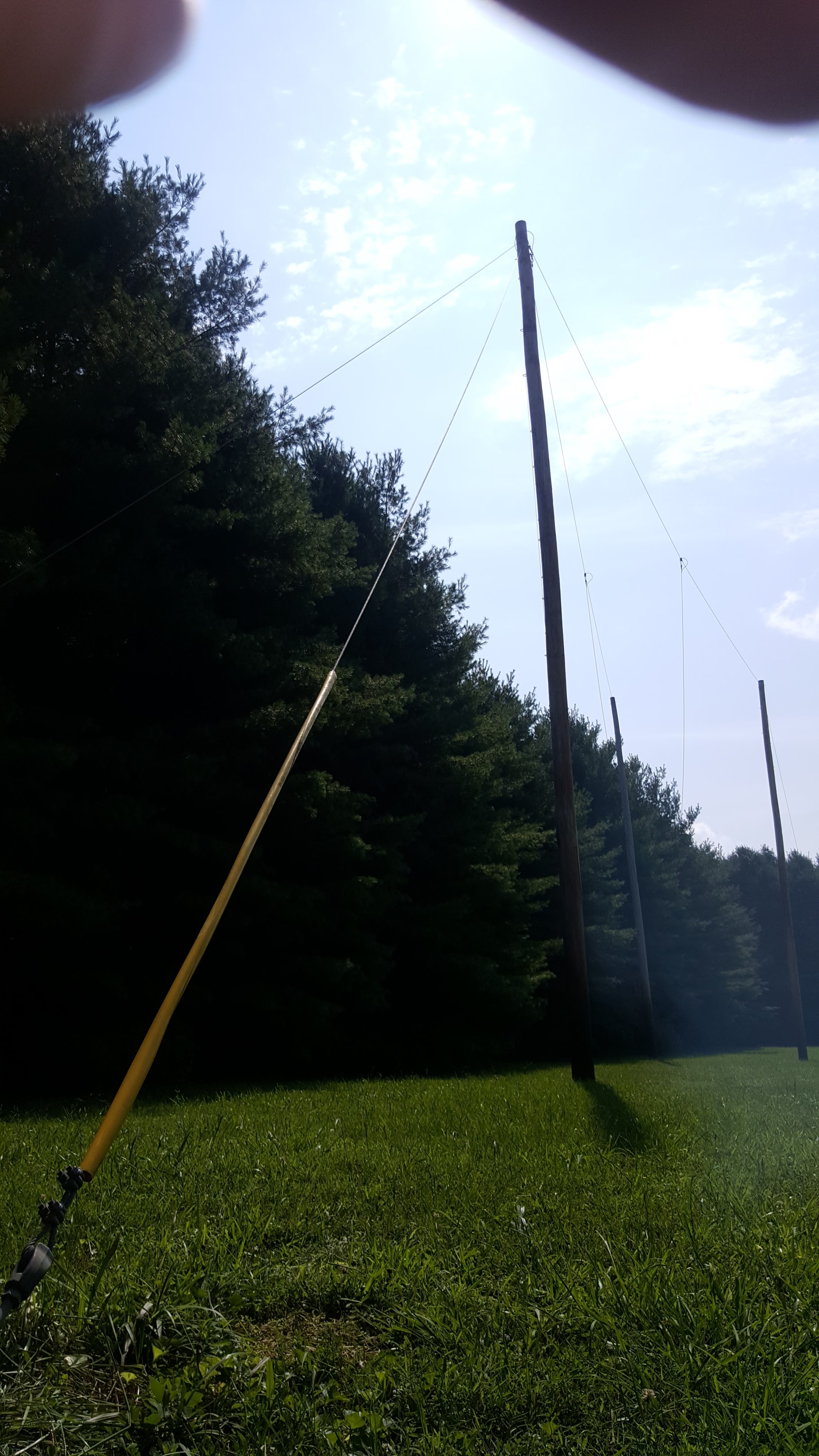

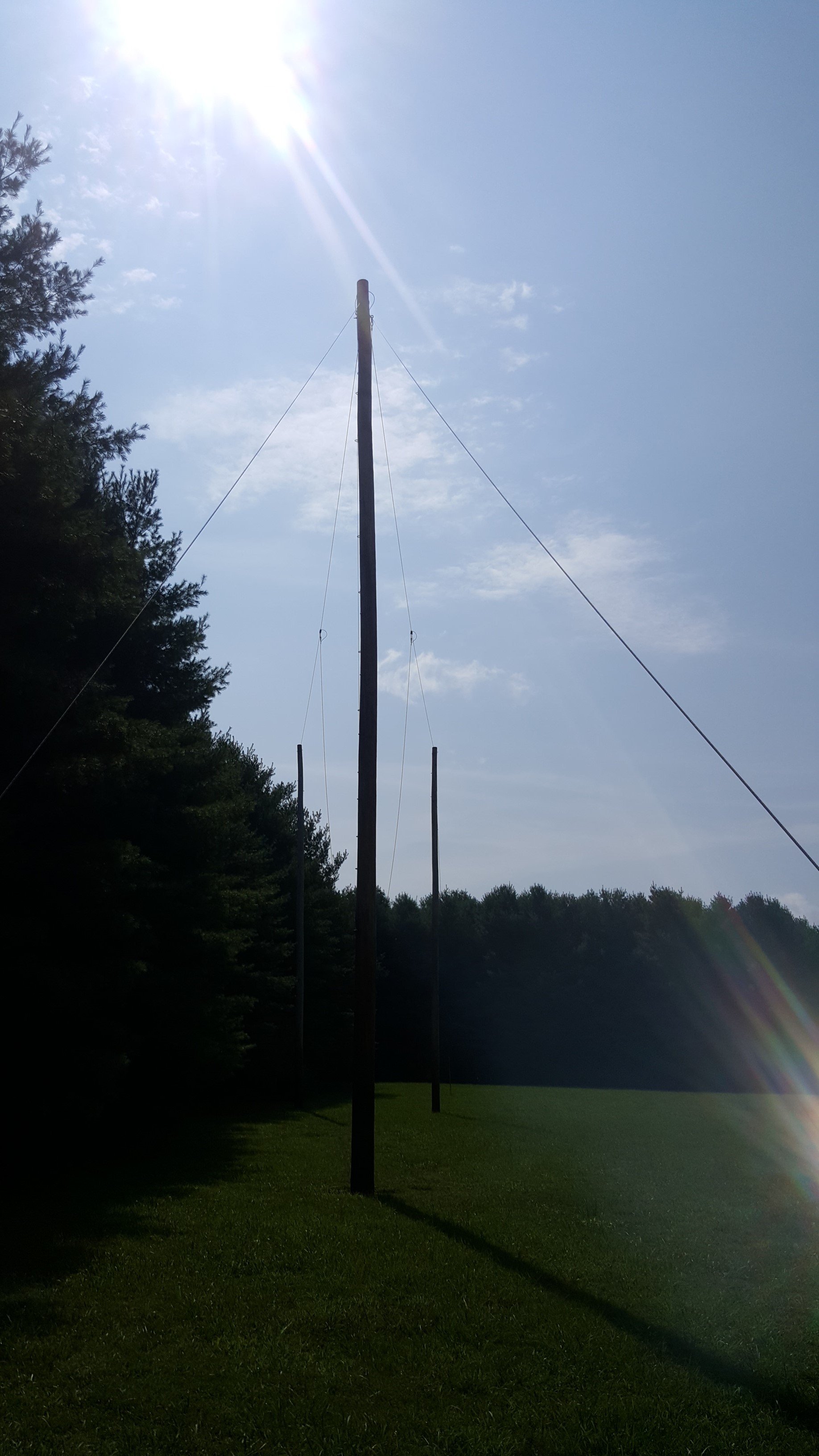

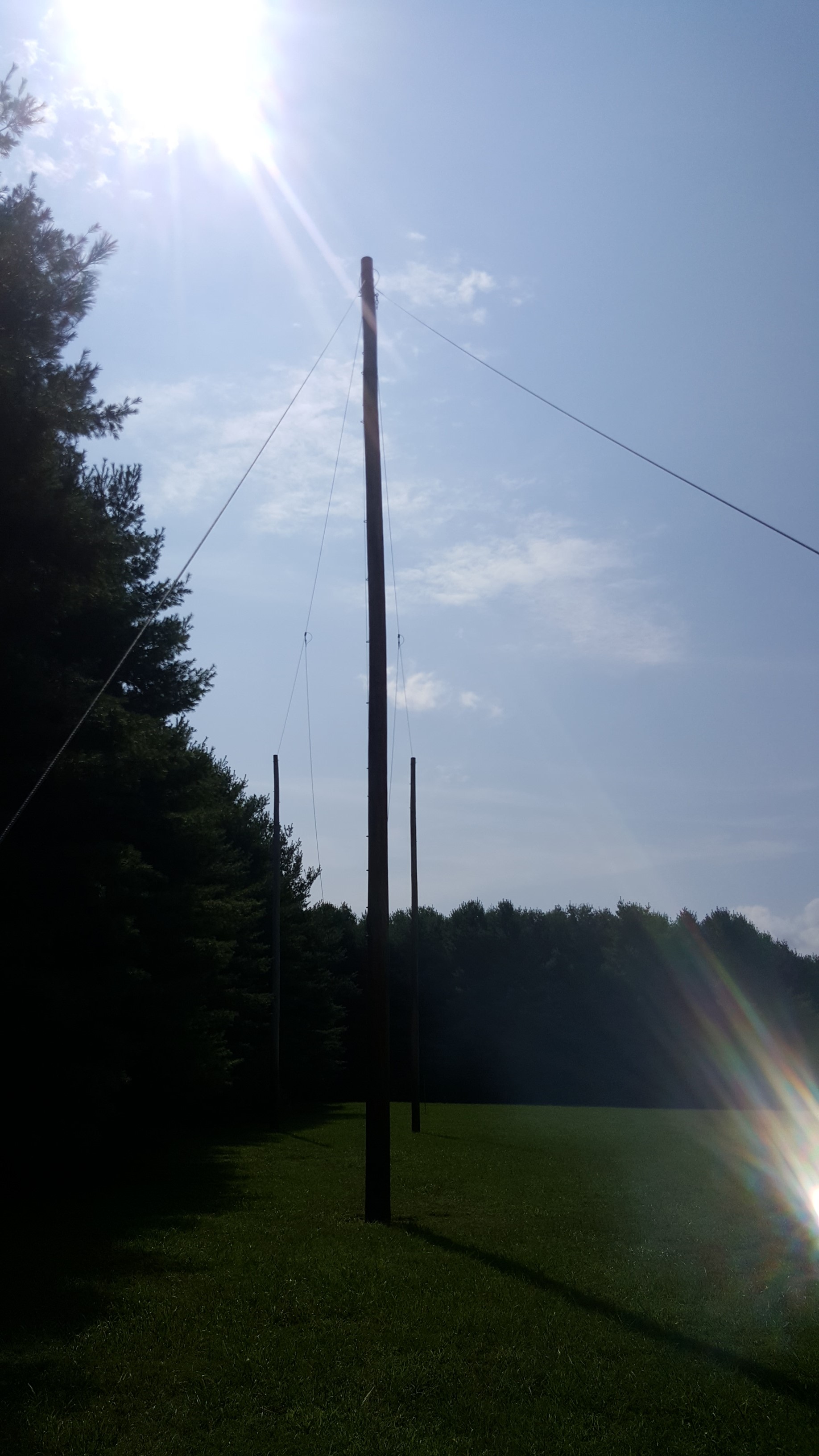

Giant Swing, west looking easterly
2016-08-06 11:01 AM 945 KB

Giant Swing, west looking easterly
2016-08-06 11:01 AM 967 KB

Giant Swing, south west looking north easterly
2016-08-06 11:01 AM 1500 KB
3

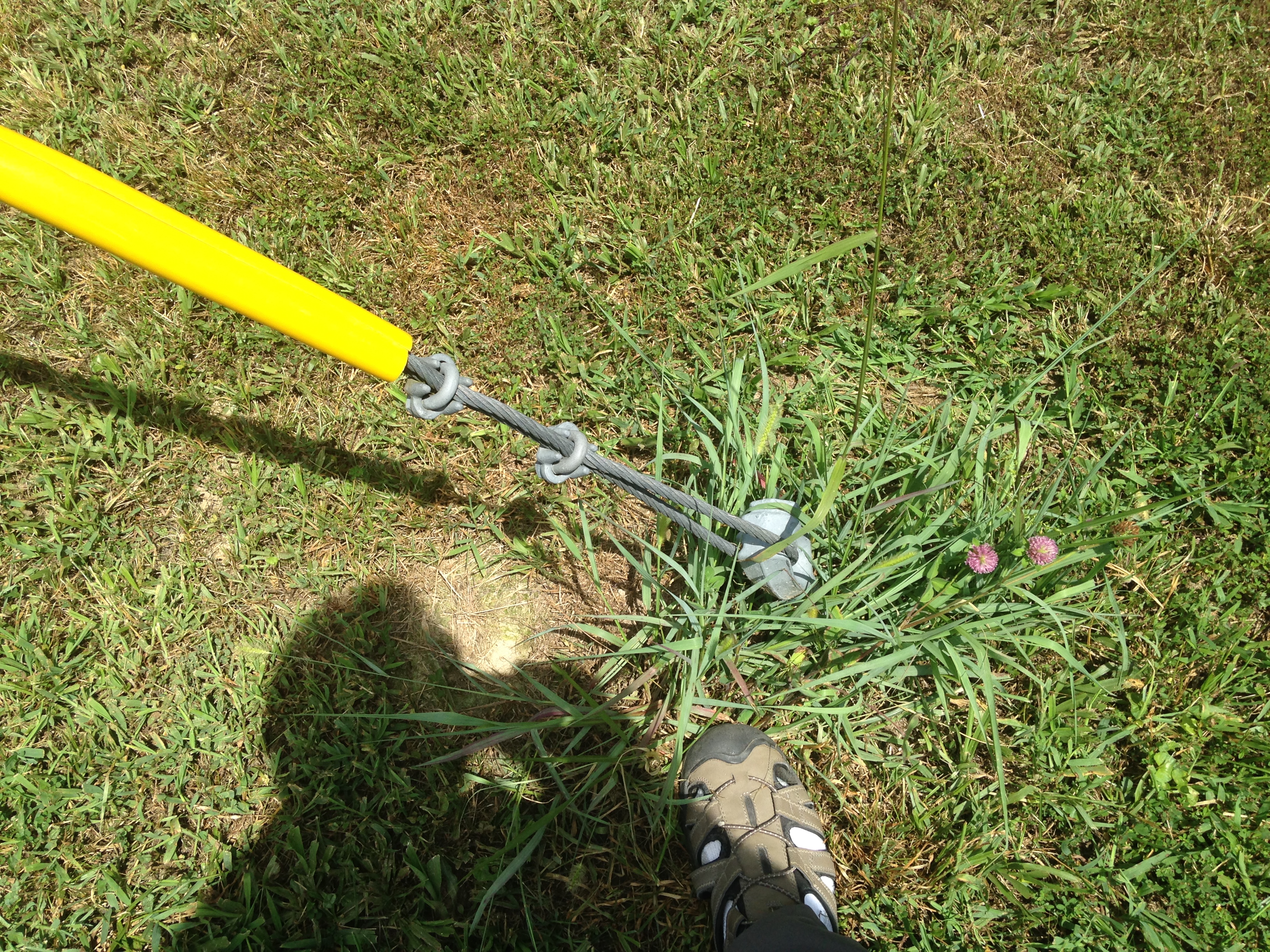

Guy, South East
2016-08-13 01:42 PM 3501 KB

Guy, North East
2016-08-13 01:42 PM 3530 KB

Guy, South East
2016-08-13 01:43 PM 4979 KB
4

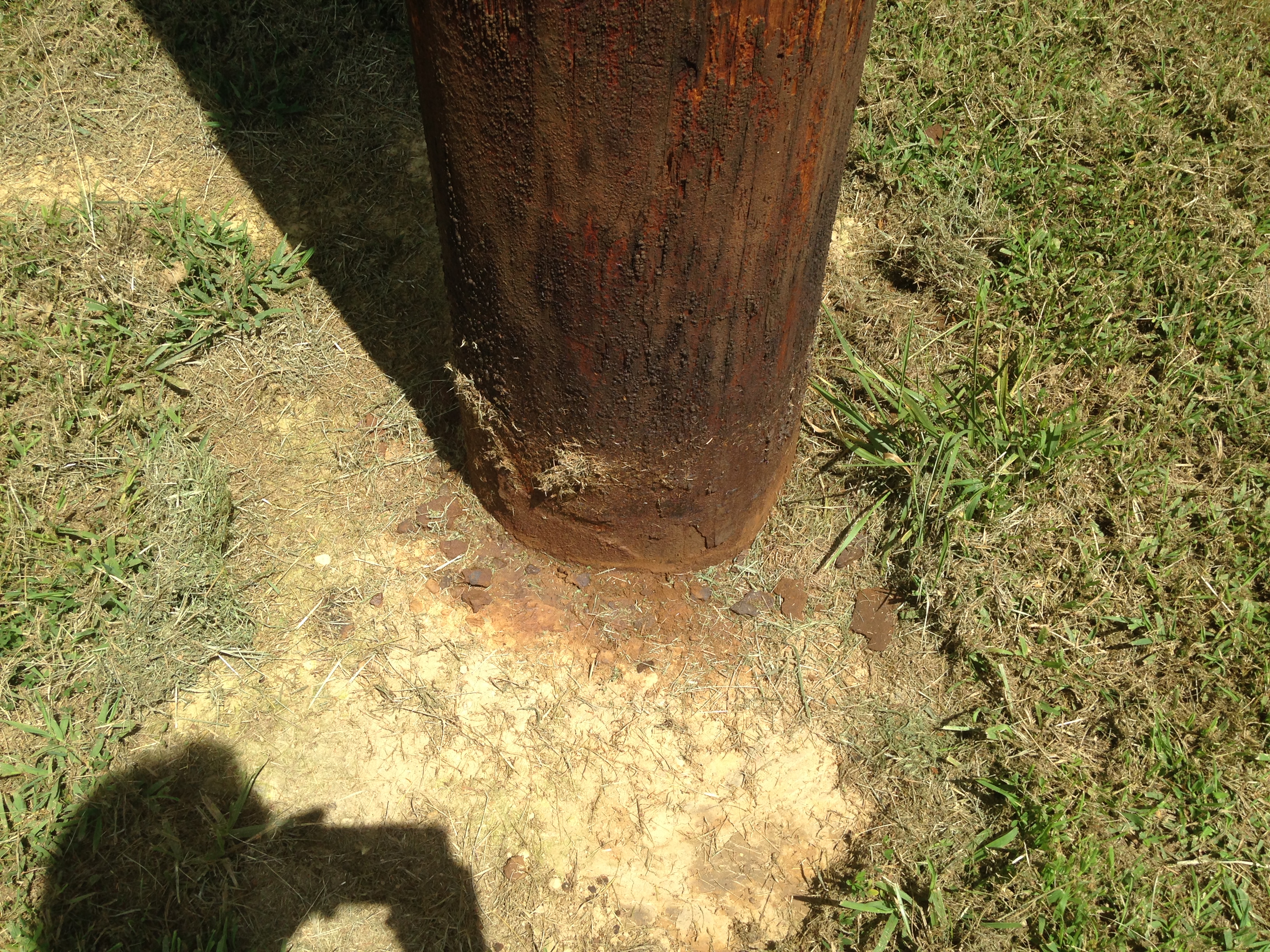

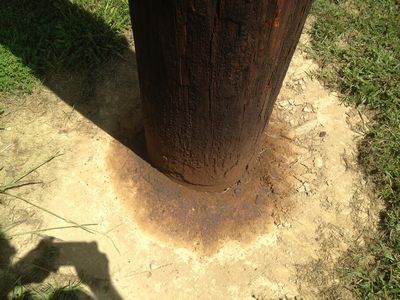

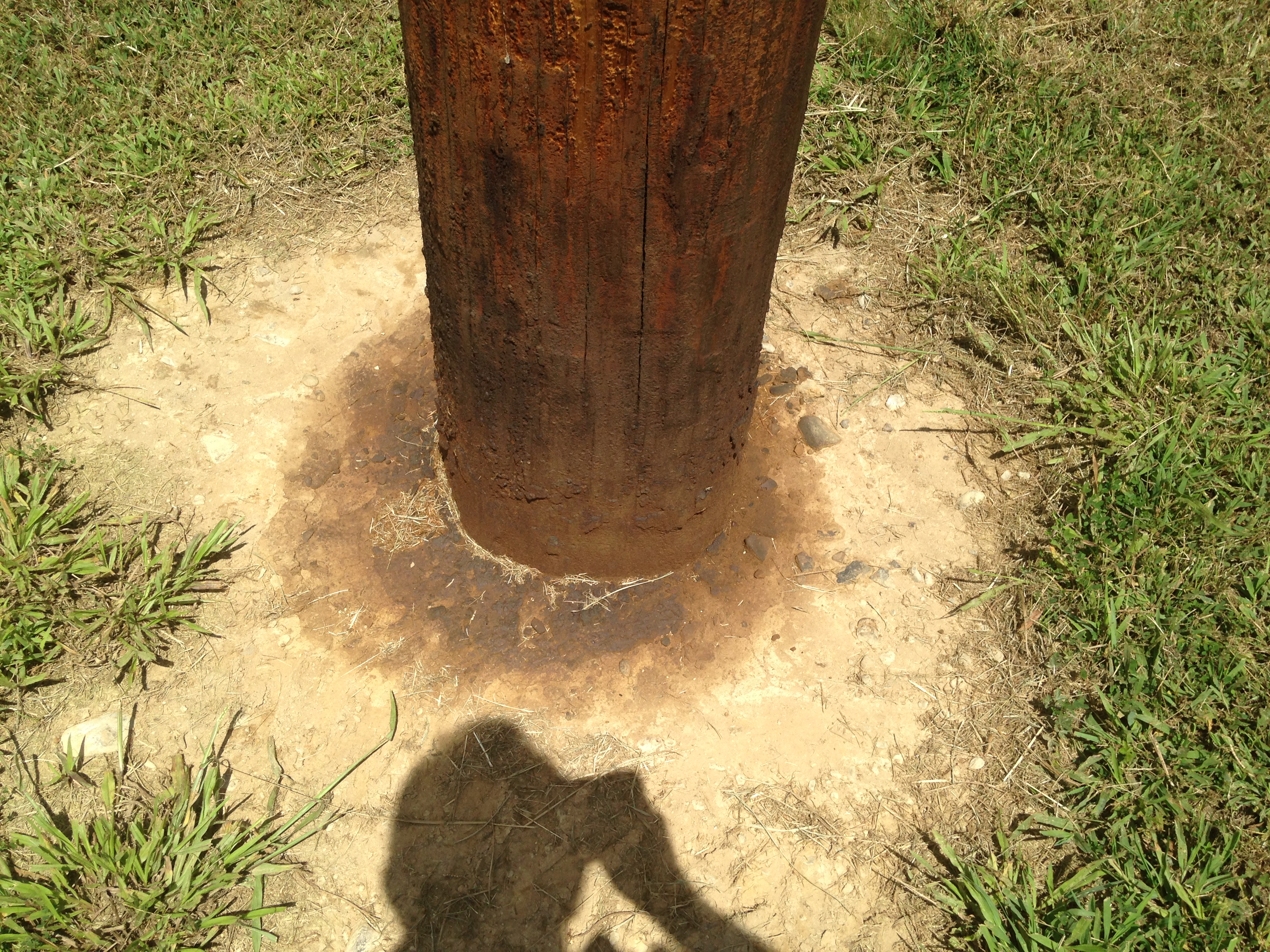

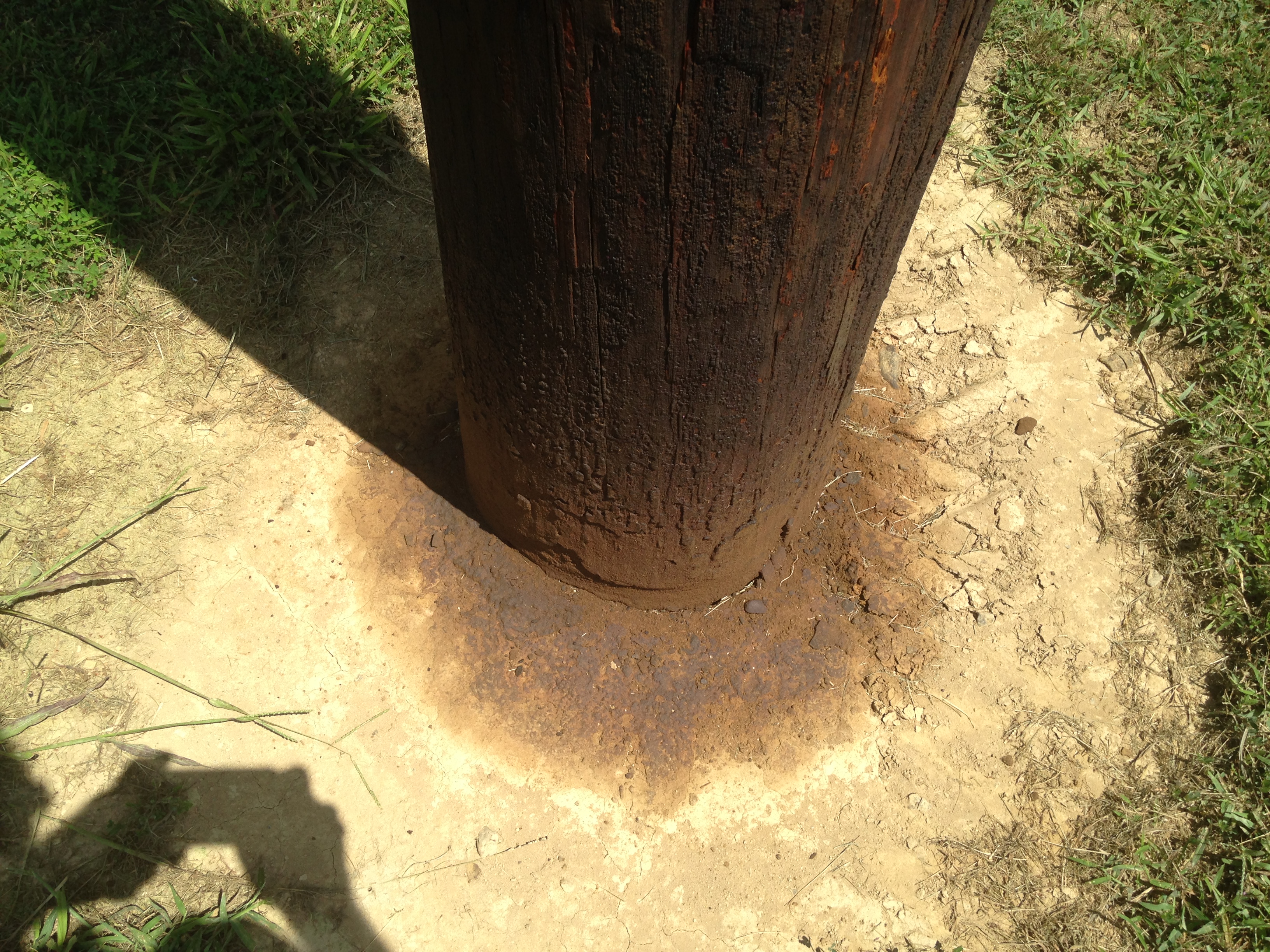

Pole, West (main pole)
2016-08-13 01:44 PM 3662 KB

Pole, North East(?)
2016-08-13 01:44 PM 4328 KB

Pole, South East(?)
2016-08-13 01:44 PM 4796 KB
5

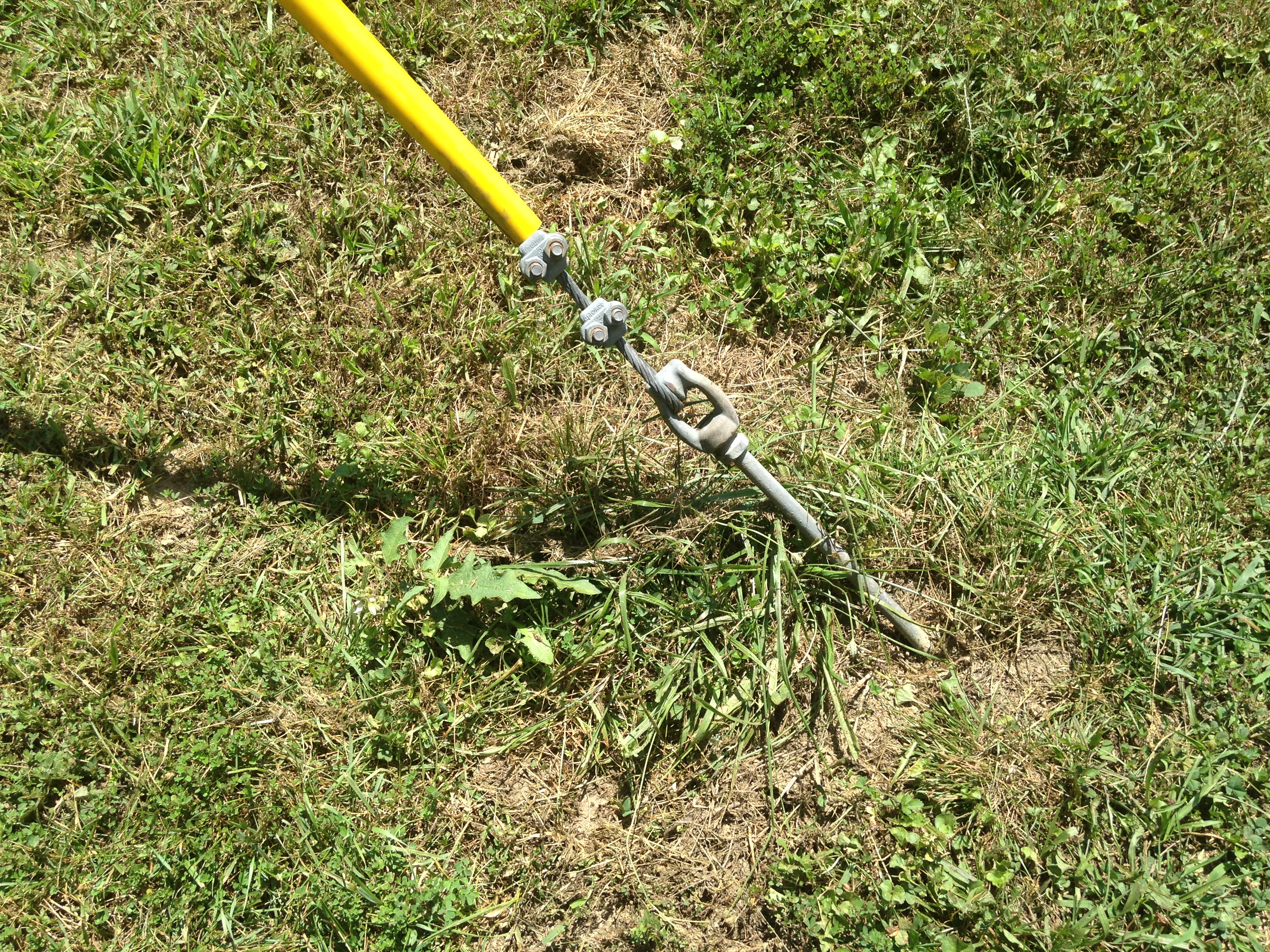

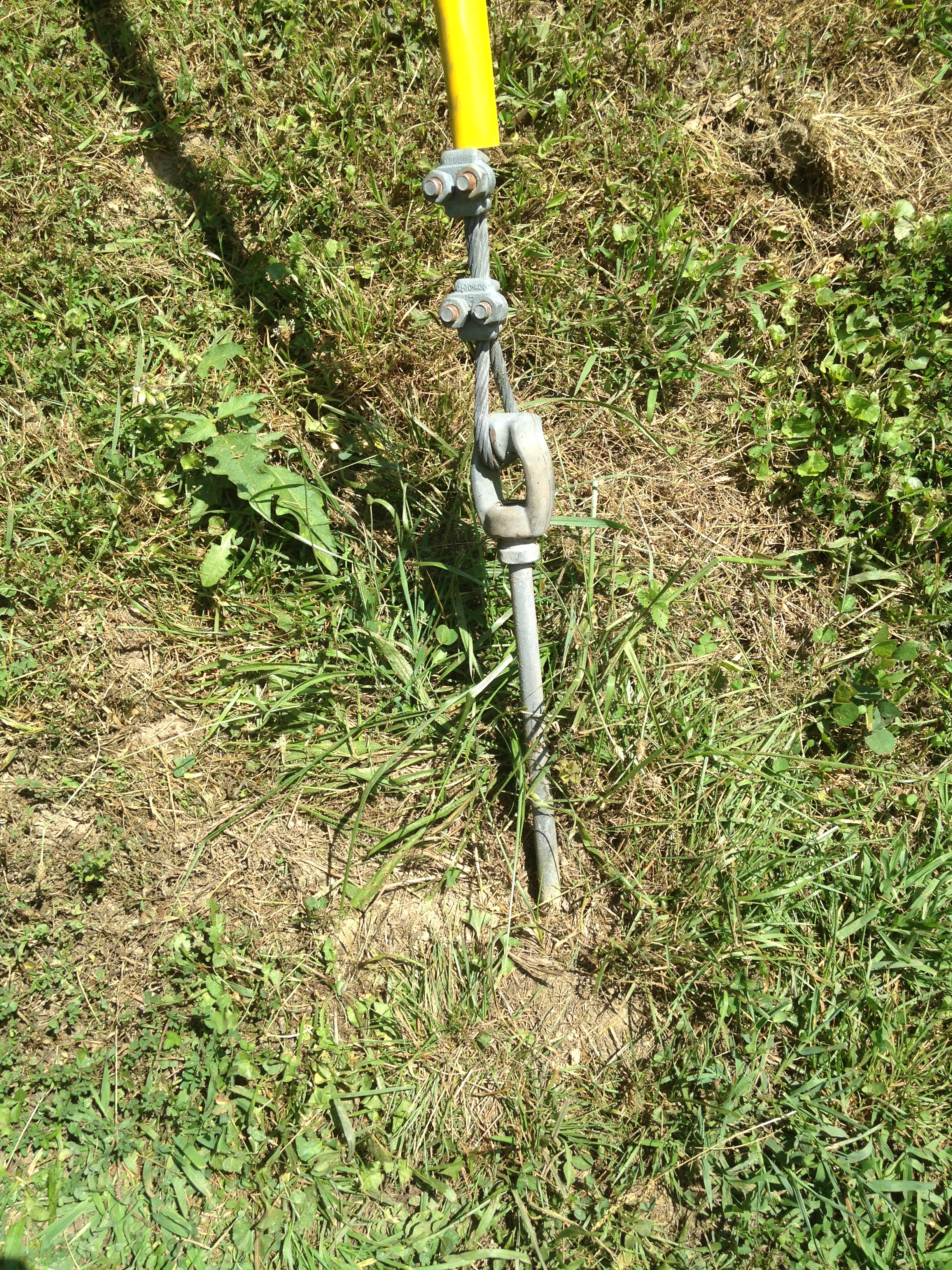

Guy, South West (the one that was hit)
2016-08-13 01:45 PM 3492 KB

Guy, South West (the one that was hit)
2016-08-13 01:45 PM 3699 KB

Guy, South West (the one that was hit)
2016-08-13 01:45 PM 3813 KB
6

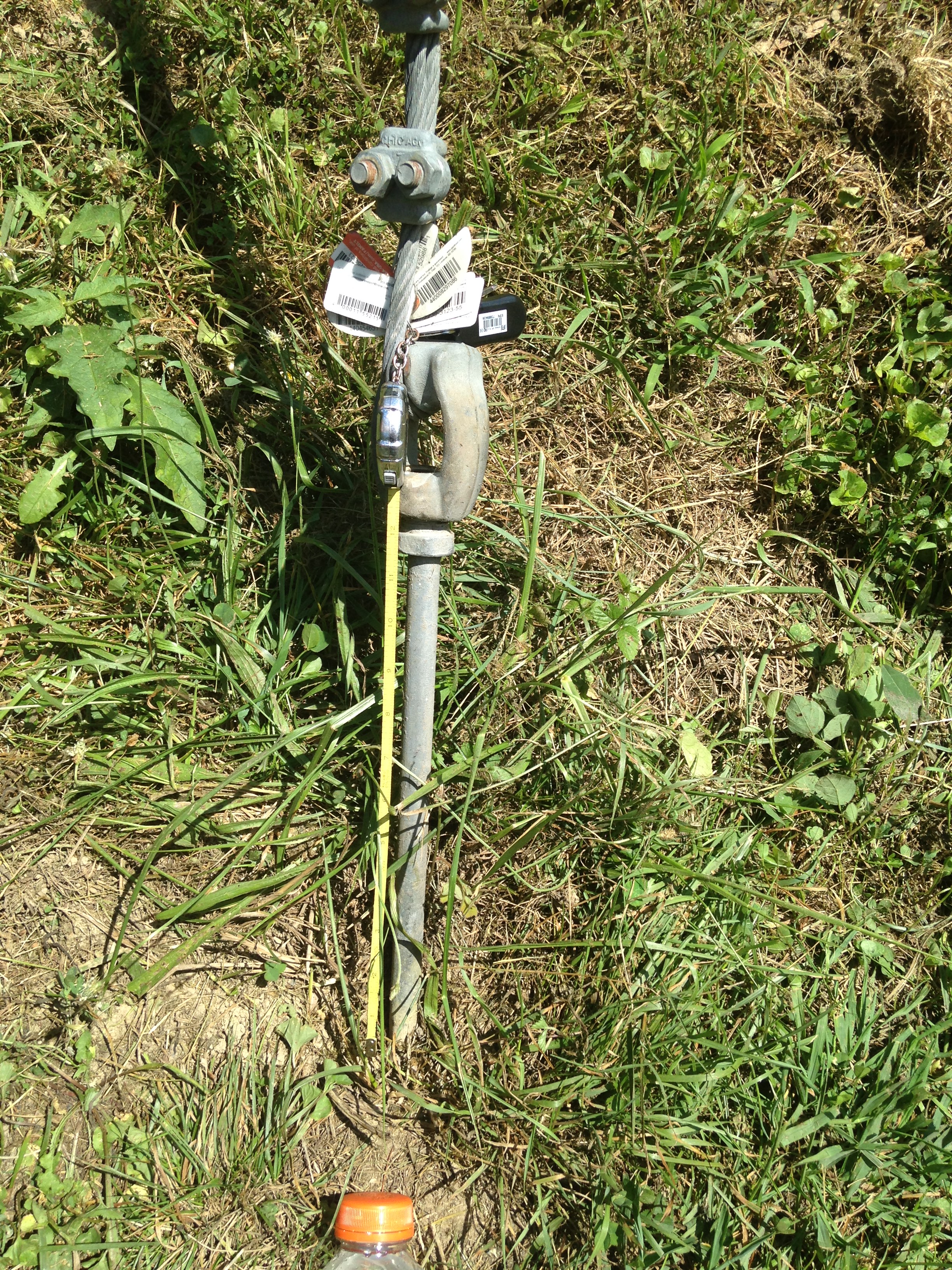

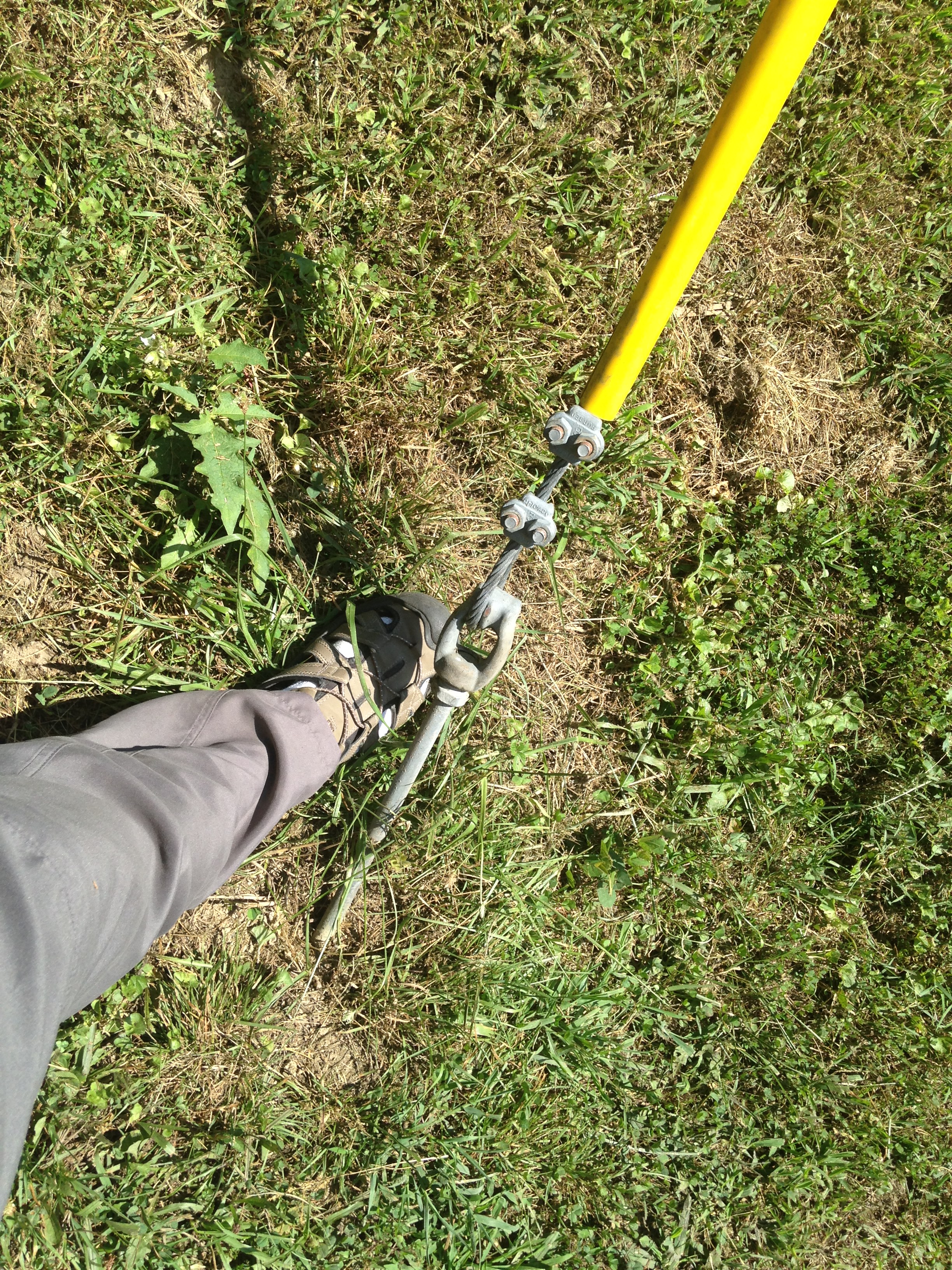

Guy, South West (with tape measure)
2016-08-13 01:46 PM 3393 KB

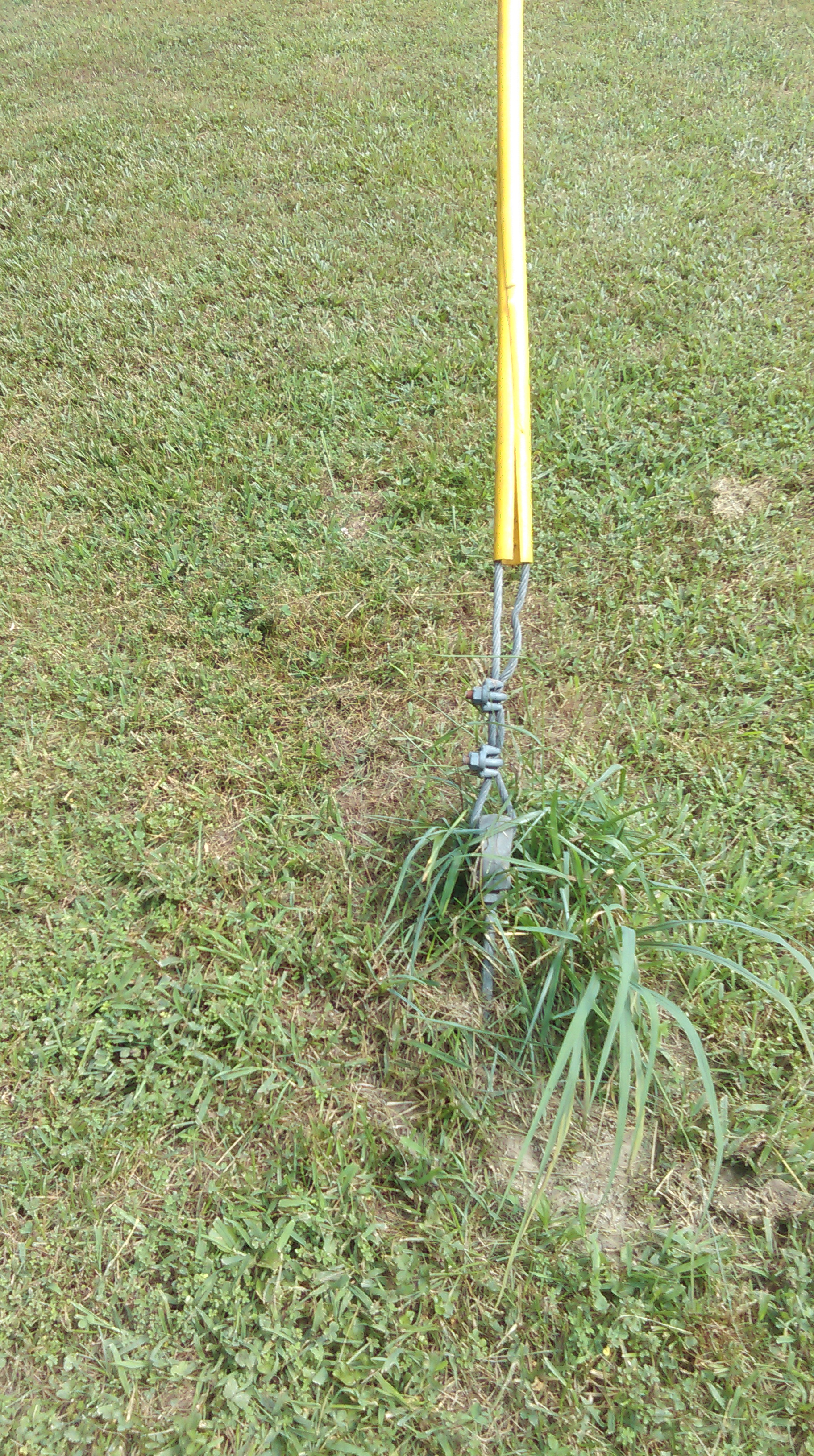

Guy, North West (undamaged)
2016-08-13 01:47 PM 3535 KB

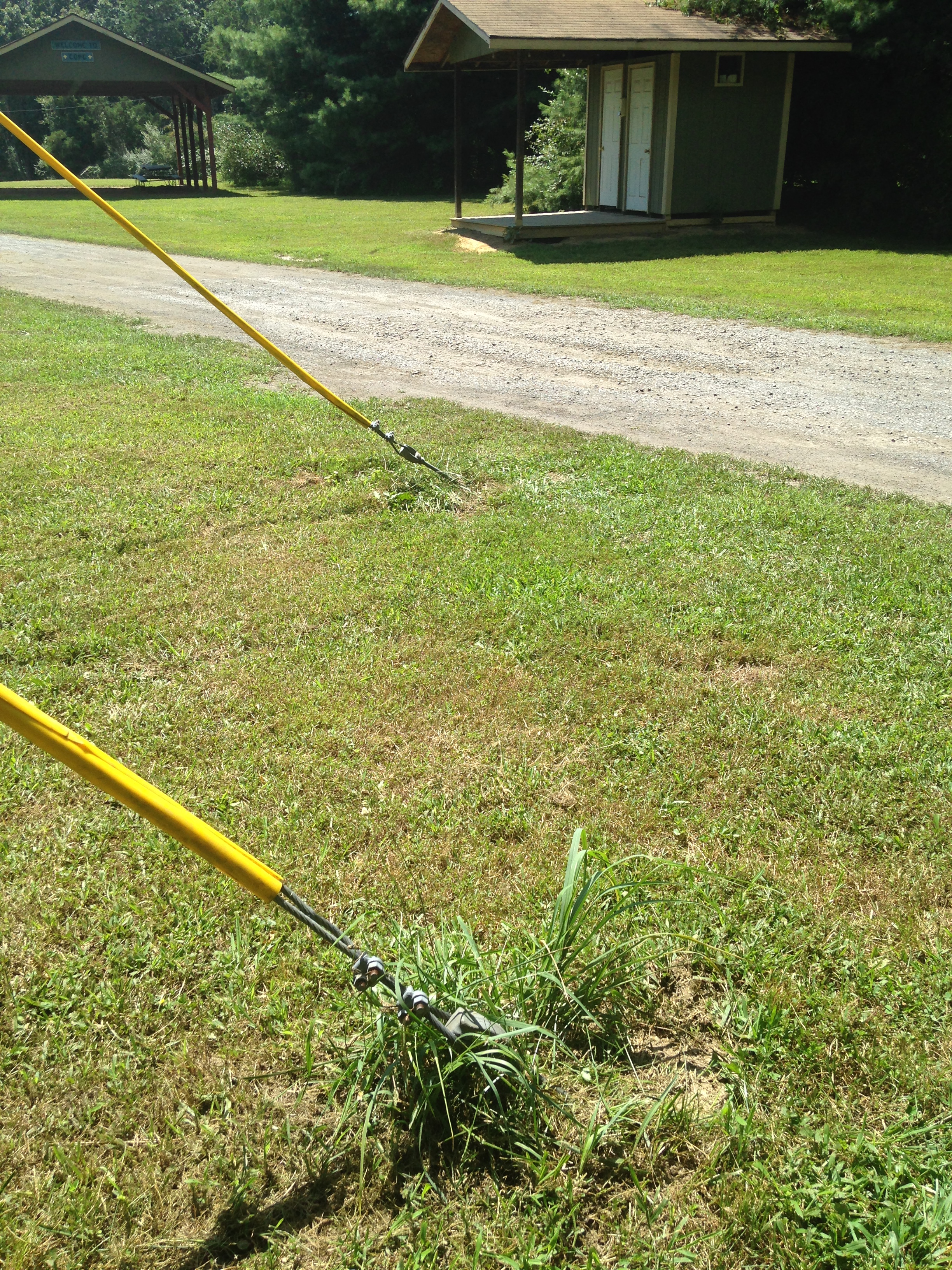

From north west looking southerly
2016-08-13 01:47 PM 4977 KB
7

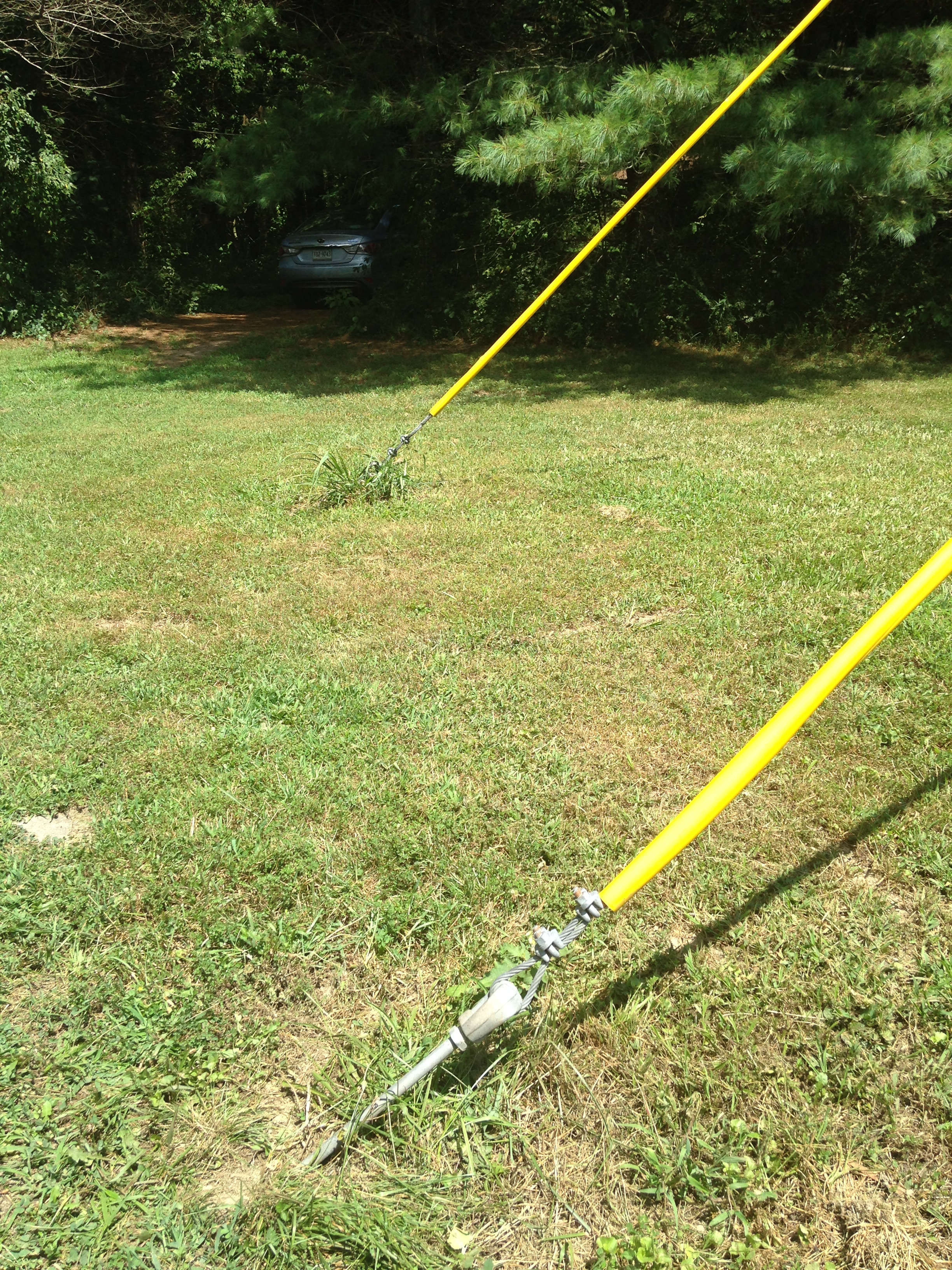

From south west, looking northerly
2016-08-13 01:48 PM 4827 KB

From south west, looking northerly
2016-08-13 01:48 PM 4963 KB

Guy, North West (undamaged)
2016-08-13 03:36 PM 3402 KB
8

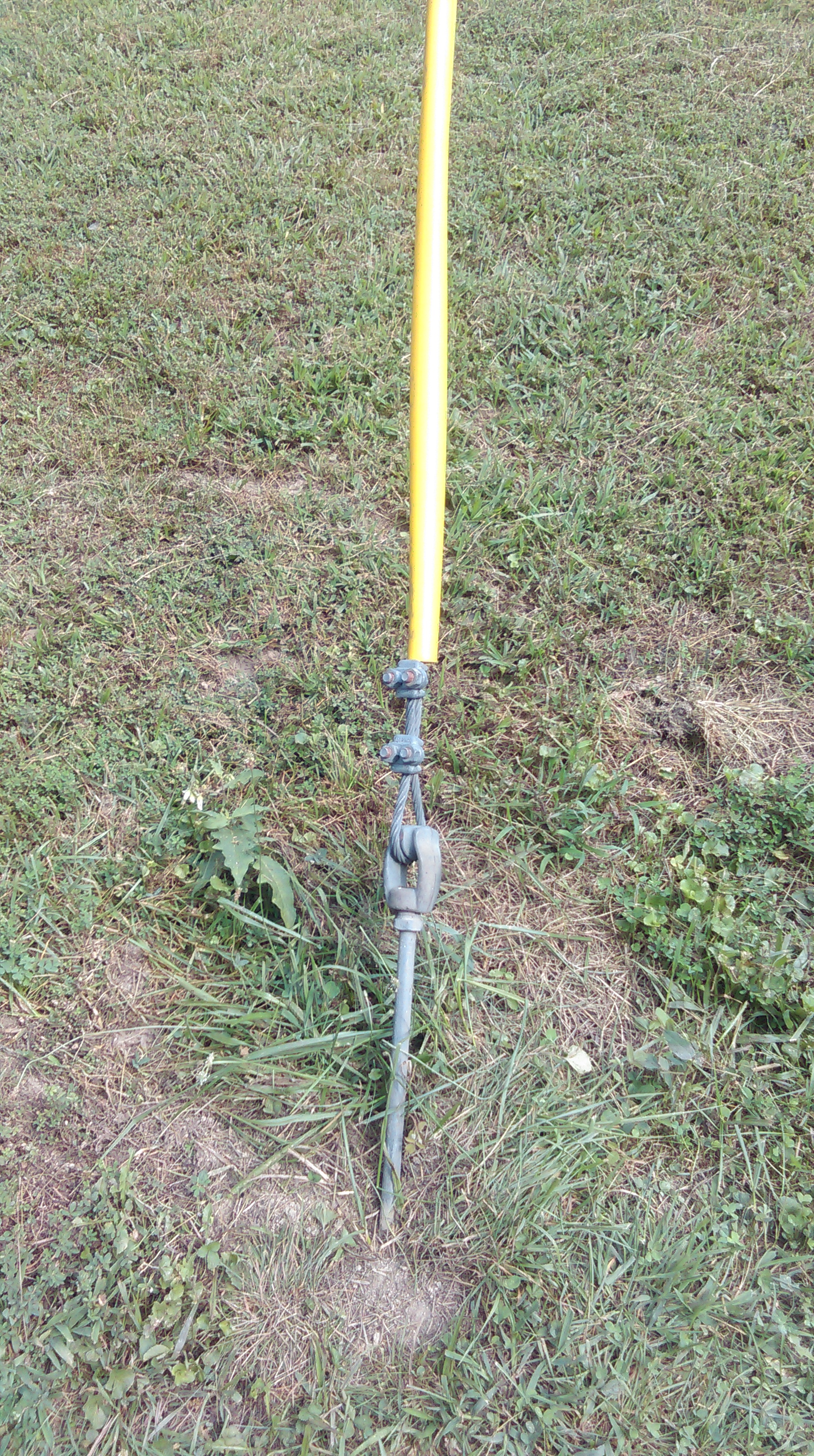

Guy, South West (the one that was hit)
2016-08-13 03:36 PM 3639 KB
